Indoor High Voltage Vacuum Circuit Breaker

VTZG-12M

1.General  Description

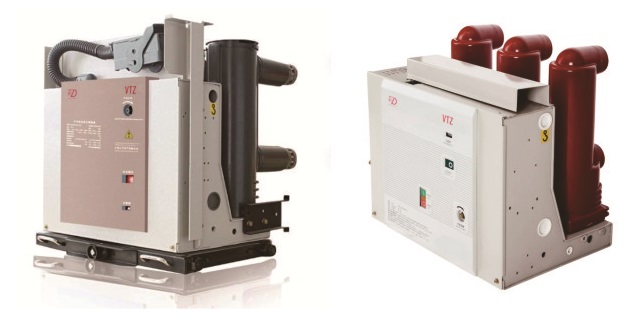

    VTZG-12M fixed type indoor HV vacuum breaker is widely used for kinds

of switchgears  such  as KYN28-12 orXGN-12.It is widely used for I2k

V voltage systems which is accordance with  G81984-2003 standards.

Structural characteristics:

1.The vacuum circuit breaker adopts air insulation.which meet air distance and creepage under normal run condition.

2.The operating mechanism is used VTZ type mechanism,the outlet curve has good adaptation for requirement of vacuum interrupters.It owns high reliable ,long life and easy  maintenance.

3.Suitable for varies sites and work places which have rigorous run condition.especially suit for  re-construction of old-fashioned oil switch.

2.Applying  conditions:

Ambient temperature;-10℃----+40℃

Relative humidity:daily average ≤95%,monthly average ≤90%

Seismic intensity ：≤8

Saturated vapor pressure：daily average ≤2.2kPa，monthly average≤1.8kPa；

Altitude：≤1000m；（Not including special requirement）

Service environment：should be avoided fire, explosion risk, serious pollution, chemical corrosion and violent vibration

3.Technical specification：
