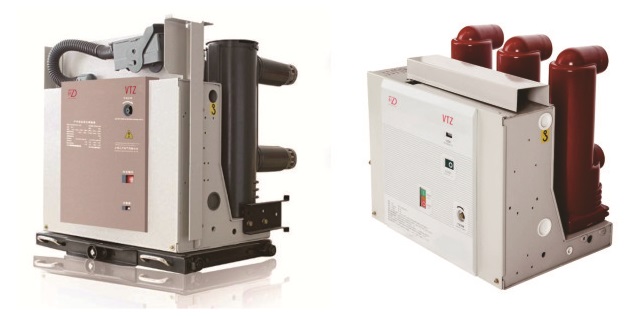

VTZG-24M Indoor High Voltage Vacuum Circuit Breaker

1.General  Description

 VTZG-24M series of indoor HV vacuum circuit breaker is with rated voltage of 24kV.three-phase AC 50 (60) Hz indoor HV switch equipment.The structure of this kind of circuit breaker is simple but with strong breaking capability:it is suitable

for application in the mining industry,substations and power transmission and distribution systems for controlling and protecting the switch. Especially suitable for the industry which requires frequently operations like metallurgy fietds,electric

arc steel plant to control and protect the equipment.This kind of vacuum circuit breaker can be assembled with truck which can be suitable for many kinds of switchgears  such as JYNI.GBC etc

2.Applying  conditions:

Ambient temperature;-10℃----+40℃

Relative humidity:daily average ≤95%,monthly average ≤90%

Seismic intensity ：≤8

Saturated vapor pressure：daily average ≤2.2kPa，monthly average≤1.8kPa；

Altitude：≤1000m；（Not including special requirement）

Service environment：should be avoided fire, explosion risk, serious pollution, chemical corrosion and violent vibration.

3. Structural characteristics:

1.The operating mechanism is introduced the technique of operating mechanism from Siemens VTZ vacuum circuit breaker. the operating mechanism is integrated with vacuum circuit breaker,with characteristics of short transmission routes,less chains and high transmission efficiency.

2.This operating mechanism adopts spring type.It can be operated by AC or DC.also can be operated by manual.

4. Technical specification
